Crown Winding Heads

Model: 2103 & 2106

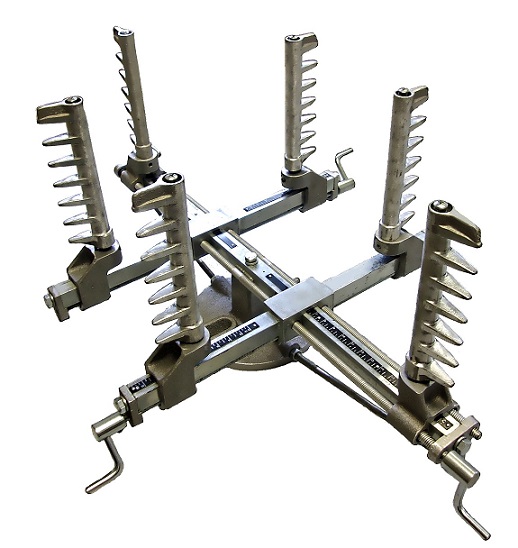

3-Phase Group Winding Heads

Model 2103
Advanced design for 3-phase motors from 1/4 - 75 H.P. Its four permanently attached cranks adjust winding arms in pairs simultaneously. Built-in easy to read scale assures accuracy. The winding arms are rigid under load and mounts easily on Crown coil winding drives or any turning device with 13 1/2" swing.

Model 2106
Advance design for three phase motors from fractional HP to over 300 HP.
Four permanently mounted cranks adjust winding arms in pairs simultaneously.
Easy to read scales for each set of winding arms assures accuracy. Graduated scales read 1/4" increments. Winding arms are rigid under load. Winds six identical coils. Can be used for continuity phase winding. Mounts easily on Crown coil winding drives or any turning device with an 18" swing. Can be easily mounted by one person as head weights only 27 lbs. Winding fingers revolve from their locked position for easy coil removal.

Note:These winding heads are designed for "HAND" wire tension.

No phone orders. P.O by fax or E-mail only.
A 4% Credit Card processing fee will be added to applicable orders.

Model #	Description	Price- US. Dollars	Packing & Handling		Weight
Model #	Description	Price- US. Dollars	Domestic	Export	Weight
2103	3-Phase Lightning Winding Head	$2,035.00	$83.00	$133.00	48 lb.
2106	3-Phase Group Winding Head	$2,475.00	$83.00	$133.00	77 lb.

Model: 2101

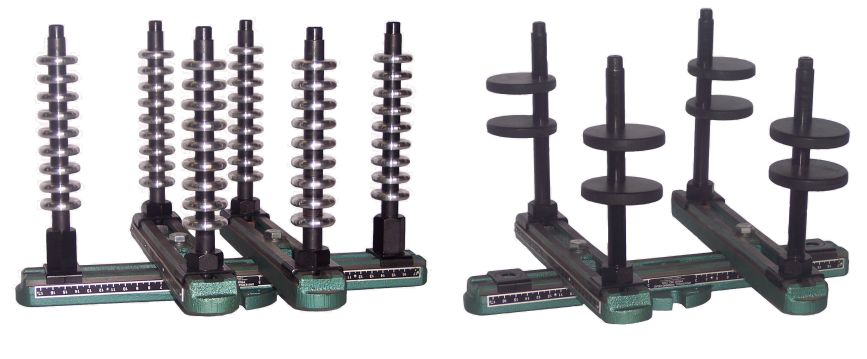

Universal Head

For winding armature, solenoid, field, motor and similar coils from a single wire, without soldering. This model has six adjustable spindles with removable sleeves, each with 9 aluminum spacing washers. An extra winding spool is furnished as a wire guide. The winding spools are removable and replaceable with sidewall retainers (4 pairs included) for deep coil winding. It mounts easily on any Crown coil winder drive or turning device with 10" or larger swing.

Note:These winding heads are designed for "HAND" wire tension.

No phone orders. P.O by fax or E-mail only.
A 4% Credit Card processing fee will be added to applicable orders.

Model #	Description	Price- US. Dollars	Packing & Handling		Weight
			Domestic	Export
2101	Universal Winding Head	$2,035.00	$15.00	$15.00	33 lb.

Model: 2102

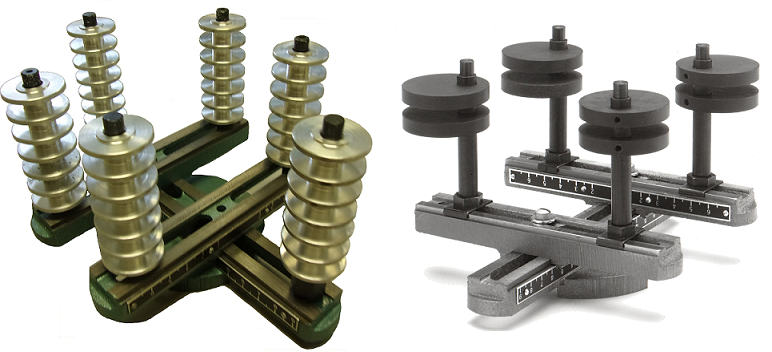

Midget Head

The midget head is ideal for all small coils, including automotive field coils. Fast, accurate adjustment with built-in easy to read scale. It comes complete with six field coil winding bobbins and extra wire guide spool. The winding bobbins are removable and can be replaced with a sidewall retainer for deep coils (4 pairs included). It mounts on any Crown coil winding drives or turning device with 6" or larger swing.

Note:These winding heads are designed for "HAND" wire tension.

No phone orders. P.O by fax or E-mail only.
A 4% Credit Card processing fee will be added to applicable orders.

Model #	Description	Price- US. Dollars	Packing & Handling		Weight
			Domestic	Export
2102	Midget Universal Winding Head	$1,865.00	$10.00	$10.00	9 lb.
